European Power Cords

Your Global Manufacturer for all of Your Standard and Custom European Power Cords Needs.

European Power Cords come in various wire sizes, lengths, amps, volts, and ends. Europe power cord plug socket manufactured to Europe CEE7/7, CEE7/17, CEE1/7 Schuko, and IEC standards, designed for European power cord applications. Our Euro power cord products are fully molded high-quality cords with RoHS compliant.

Also, we put a strong emphasis on quality. Our knowledge and expertise in the heart of our quality assurance process and promise of excellence to our customers. Our wide range of certifications is a testament to our quality and reputation. Those certifications include RoHs, CE, VDE, GS certificates.

european power cords CEE 7/17 plug
Play Video

Applications

What are EU power cords?

European power cords are European main cords, European mains leads, European line cords, European power cables, and European mains cables.

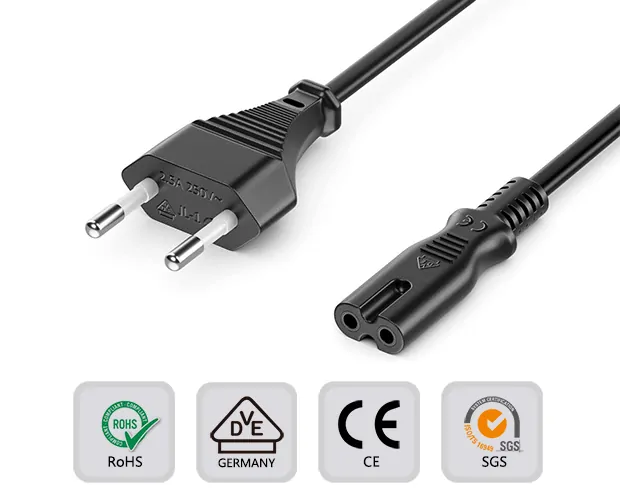

Euro plug



The Euro plug is a flat, two-pole, round-pin domestic AC power plug, rated for voltages up to 250 V and currents up to 2.5 A. It is a compromise design intended to safely connect low-power Class II appliances to the many different round-pin domestic power sockets used across Europe. However, it is not compatible with the rectangular-pin BS 1363 sockets found in Cyprus, Gibraltar, Hong Kong, Ireland, Malta, and the United Kingdom. Euro plugs are non-rewirable and must be supplied attached to a power cord.

Euro plug european power cord

Schuko CEE7/7 Plug

The Type F plug (also known as Schuko – shorthand for the German "Schutzkontakt") has two round pins (diameter 4.8mm, centers spaced 19mm apart). It is similar to a Type E plug; however, instead of a hole for the earth. The pin has two earth clips on the sides.

Schuko CEE7/7 Plug european power cord

European power cords feature

Europe Type F power cords are black, white as the standard color. Europe power cords can custom cable color, length, and shielded as your project. Usually, the power cords end with IEC 60320 connector, which also can be custom stripping and terminal. Europe's detachable power cords and power supply cords supplied by DCpowercord meet Europe's specific standards and current REACH and RoHS requirements.

Type F terminology, indicated above for Europe power cord plugs, is an alphabetical letter classification coding system used primarily to quickly identify the electrical configuration of plastic, receptacles, and power cords set in Europe.

European power cords manufacturing process

Step1: Cutting and stripping the electrical cable to the length and outer jacket

Cutting and stripping the electrical cable to the length and outer jacket

Step 2: Stripping and twisting the inner cable wire

Stripping and twisting the inner cable wire

Step3: Crim the plug to the power cable to make the European power cord head plug.

Crim the plug to the power cable to make the European power cord head plug.

Step 4: Crim the AC terminal to cable to make the Europe power cord tail plug.

Step5: After crimping the tail plug then manually insert the plastic cover



Crim the AC terminal to cable to make the Europe power cord tail plug

Step6: Injection and Molding

Injection and Molding

Step 7: Power Cord Performance Testing

Power Cord Performance Testing



Step 8: Packing the European Power cord

Packing the European Power cord

European power cords certificate

VDE MARK

VDE Organization

Electro-technical products including products according to the Product Safety Act (ProdSG) and medical products according to the Medical Product Act (MPG) according to VDE/EN/IEC standards, other technical specifications as well as possible provisions of law with respect to safety and health requirements.

VDE GS Mark

Technical working equipment and commodities ready for use, in the sense of ProdSG (optional for such products instead of VDE Mark) according to VDE/EN/IEC standards, other technical specifications as well as possible provisions of law with respect to safety and health requirements

ENEC Mark of the VDE

ENEC Organization

Products according to the ENEC certification procedure based on EN standards and specifications of the ENEC procedure

Do you now understand what European power cords are? And how to identify Europe power cords? You may also have some other problems when you buy European power cords? There we list the most prevalent issues which our buyers always ask.

EU power cord types

The standard, Class I grounded mains, plugs used in Germany, Austria, the Netherlands, Sweden, Norway, Finland, and Russia are the CEE 7/4 and CEE 7/7 plugs. Because this standard is used so commonly throughout Europe, we refer to it as the "Continental European" standard. Both styles have two 4.8mm round contacts on 19mm centers. Grounding is achieved through the grounding clips on the sides of the plug body.

The CEE 7/7 plug also has a female receptacle, permitting it to be plugged into the French/Belgian sockets with a male grounding pin. (For more information, see Power Cord Safety Marks)

European power cord color code

IEC (most of Europe) AC power circuit wiring color codes

IEC (most of Europe) AC power circuit wiring color codes

Function label Color, IEC Color, old IEC
Protective earth PE green-yellow green-yellow
Neutral N blue blue
Line, single phase L brown brown or black
Line, 3-phase L1 brown brown or black
Line, 3-phase L2 black brown or black
Line, 3-phase L3 grey brown or black

Sourcing Guide for European Power Cords

DCpowercord is China leading power cord manufacturer, having the best manufacturing capacity to provide the lowest prices, best quality, and lead times for Power Cords upon our comprehensive policy of lower prices with high volume export.

Europe power cord plug socket products are manufactured to Europe CEE7/7, CEE7/17, CEE1/7 Schuko, and IEC standards, designed for European power cord applications. All of our Europe power cord products are fully molded high-quality cords with RoHS compliant. Contact us for European electrical devices and power cords as China leading European power cord manufacturer and supplier VDE approved.
